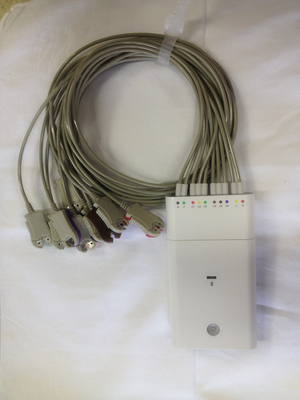

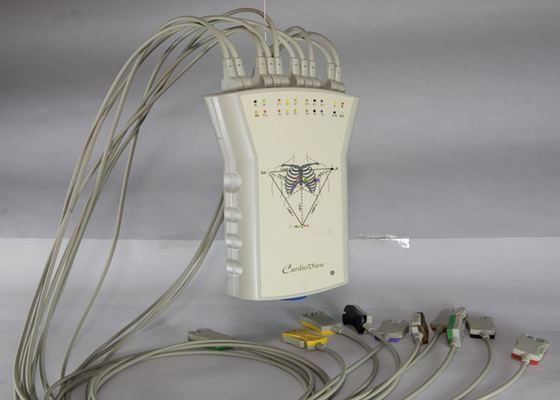

Bluetooth 12-Channel ECG Machine Cardiofax ECG Machine With ISO
|
পণ্যের বিবরণ:
প্রদান:
|
বিস্তারিত পণ্যের বর্ণনা
| লক্ষণীয় করা: | wireless ecg machine,cardiac monitoring equipment |
||
|---|---|---|---|
Home Bluetooth 12 Channel ECG Machine
Quick Detail
|
Name |
12-lead stress ECG |
Function |
automatically monitor and analysis ECG |
|
Type |
Stress |
Cable |

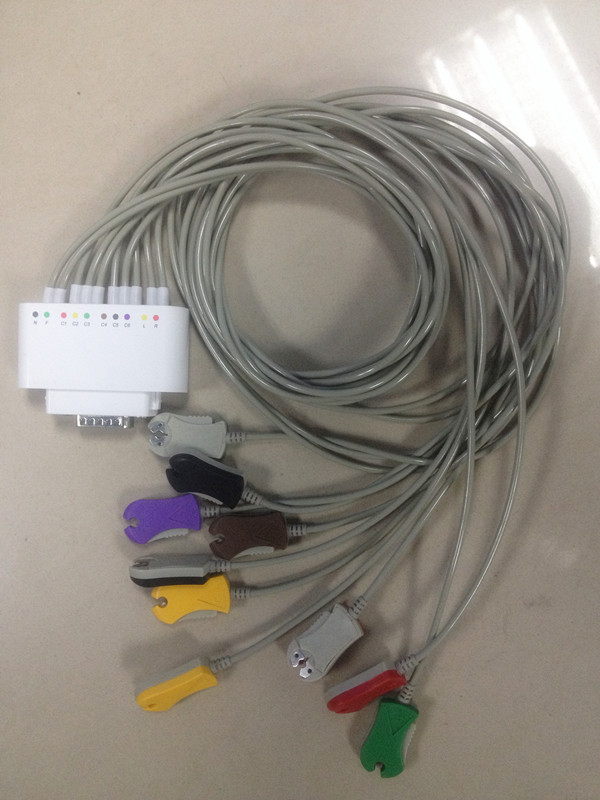

simultaneous 12-lead |
|
Connection |
bluetooth |
certification |
CE ISO |
Description
|
Brand Name |
V&H |
|
Model Number |
CV1200 |
|
Place of Origin |
Beijing, China (Mainland) |
|
Color |
Hite black grey |
|
Transfer way |
bluetooth |
1. Automatic ECG measurements and interpretation
2. 12- channel ECG with ST measurement
3. CE approve

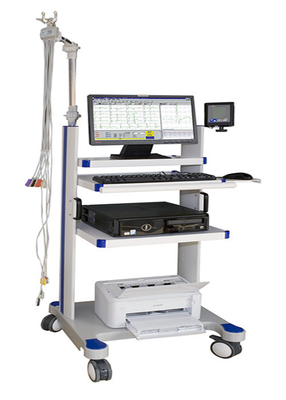

CV-1200 Stress Test System
CV-1200 Stress Test System is a perfect solution for Cardiology Diagnosis, it provides Record, Display, Archived, and Analyze ECG Recording and other Measurements
Standard Features
- 12-channel resting ECG
- Automatic ECG measurements and interpretation
- 12-channel full disclosure exercise ECG, with ST measurement and rhythm measurement
- Real time display, analyze HR,ST segment, and reanalyze ST segment
- ST, Delta ST,ST/HR,ST slope, J point and R point trends
- Data management system
- Built-in thermal printer records,3,6,or 12 channels simultaneously in real time
- Common laser printer interface for documentation on standard(A4) paper
- CV-1200 controls selection of peripheral

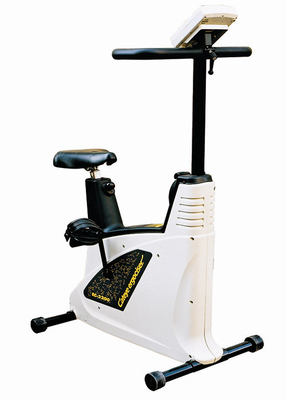

equipment ( ergometers, treadmills and NIBP) through integrated interface protocols(Bruce, Bruce modified, Balke ware, Ellestad, ect.) - Large color screen with high resolution for paperless operation
- Microsoft Windows XP operating system
Specification
|
CV-1200 Specification |
||
|
System |
Monitor |
17"colour,high resolution |
|
Operator interface |
Standard alphanumeric PC keyboard, and mouse |
|
|
Power requirement |
110/230V,50/60Hz |
|
|
Battery |
emergency ECG capability with uninterrupted internal power supply for up to 3 minutes |
|
|
Operating system |
Microsoft Windows XP, Ergometer, Treadmill, NIBP |
|
|
Printing |
Chart paper |
Thermo reactive, Z-fold,width,A4 |
|
Paper speed |
12.5/25/50mm/sec |
|
|
Sensitivity |
5/10/20mm/mV |
|
|
Print format |
6/12 channel printout, |
|
|
Technical Date |
Frequency Response |
|
|
Sampling rate |
1000Hz/ch |
|
|
CMR |
>90dB |
|
|
Maximum Electrode Potential |
+300mV DC |
|
|
Isolation |
4000V |
|
|
Current Leek |
<10µA |
|
|
Digital Resolution |
12 bits |
|
|
Input range |
+10 mV |
|
|
Software optional |
Automatic ECG measurements and interpretation, |
|
|
Environment Condition |
Temperature operating |
10 to 40 |
|
Temperature storage |
-10 to 50 |
|
|
Pressure operating |
860hPa to 1060hPa |
|
Commerce Clause
|
Minimum Order Quantity: |
1box/boxes |
|
Price: |
negotiation |
|
Packaging Details: |
standard package |
|
Delivery Time: |
15days after payment |
|
Payment Terms: |
Ex works T/T Money Gram |
|
Supply Ability: |
10 Box/Boxes / Week |
